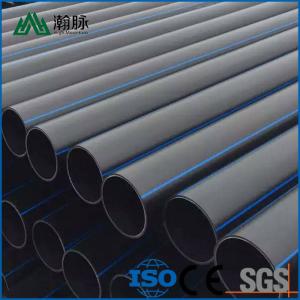

Manufacturer Supplies Pe Water Supply Pipe Large Diameter Hdpe Water Supply Pipe With Complete Specifications
----------------------------------------
Basic Info.
High-Density Polyethylene (HDPE) pipe is a versatile and durable piping solution widely used in various industries for fluid and gas transportation. Manufactured from thermoplastic polymer, HDPE pipes offer remarkable strength, chemical resistance, and flexibility. The material's toughness makes it well-suited for both underground and above-ground installations, capable of withstanding environmental stresses and varying temperatures.
| Size | | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| | | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 |
| OD(inch) | OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 1/2 | 20 | 2.3 | 2.3 | | | | |
| 3/4 | 25 | 3 | 2.3 | 2.3 | | | |
| 1 | 32 | 3.6 | 3 | 2.4 | | | |
| 1 1/4 | 40 | 4.5 | 3.7 | 3 | 2.4 | | |
| 1 1/2 | 50 | 5.6 | 4.6 | 3.7 | 3 | | |
| 2 | 63 | 7.1 | 5.8 | 4.7 | 3.8 | | |
| 2.5 | 75 | 8.4 | 6.8 | 5.6 | 4.5 | | |
| 3 | 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 4 | 110 | 12.3 | 10 | 8.1 | 6.6 | 5.3 | 4.2 |
| 5 | 125 | 14 | 11.4 | 9.2 | 7.4 | 6 | 4.8 |
| 5 | 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 6 | 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 7 | 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 8 | 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 8 | 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 10 | 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 11 | 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 12 | 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15 | 12.1 |
| 14 | 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 16 | 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 18 | 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 20 | 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 22 | 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 24 | 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30 | 24.1 |
| 28 | 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 32 | 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 36 | 900 | | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 |
| 40 | 1000 | | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 |
| 48 | 1200 | | | 88.2 | 67.9 | 57.2 | 45.9 |
| 55 | 1400 | | | 102.9 | 82.4 | 66.7 | 53.5 |
| 60 | 1500 | | | 110.2 | 88.2 | 71.4 | 57.6 |
| 65 | 1600 | | | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
1. Corrosion resistance: No anti-corrosion layer is required for pipelines buried underground, and the service life is as long as 50 years.
2. No leakage: hot-melt connection is adopted, and the interface strength is higher than that of the pipe body.
3. High toughness: The elongation at break of PE pipes generally exceeds 500%, and it has a very strong adaptability to ground subsidence. It is a pipe with excellent seismic performance.
4. Flexibility: The pipe can be supplied in coils, and the amount of trench excavation is small, which is especially suitable for trenchless construction technology.
5. Light weight, low construction labor intensity, convenient and fast installation.
6. The water flow resistance is small, and the pipeline has a smooth inner surface, which reduces the pressure loss of the pipeline and the energy consumption of water delivery.
Details
Application
Telecommunications and Cable Protection: HDPE pipes are used to protect telecommunication cables and fiber optics. They provide a durable and protective conduit for underground or aerial installations.
Geothermal Applications: HDPE pipes are suitable for geothermal energy systems, where they are used for the transport of hot water or steam due to their resistance to high temperatures and corrosion.
Landfill Leachate Collection: In landfill applications, HDPE pipes are utilized for the collection and transport of leachate, the liquid that drains from landfills. Their resistance to chemicals ensures the integrity of the collection system.
Certificate
Company Profile
High Mountain Pipe is a modern emerging enterprise integrating scientific research, development, production and sales. It also sells plumbing equipment from other well-known domestic manufacturers, and its business scope covers various overseas countries and cities.
The company will adhere to the corporate tenet of "survive by quality, develop by service", "abide by contract and respect reputation", and take "integrity, pragmatism, pioneering and enterprising" as its business philosophy to provide you with excellent products and services. Hope to establish long-term friendly cooperative relations with customers from all over the world. Go hand in hand, mutual benefit and create brilliance together.
The company adheres to the belief of "integrity first, mutual benefit, and efficient development", based on the present and focusing on the future. Warmly welcome new and old customers, guests and friends from all walks of life to patronize, consult and guide, work together to create brilliant.
FAQ
Q: Where is your company?
A: We are located in Jiangsu, China.
Q: What is your minimum order quantity?
A: Accessories: one box or one bag.
Pipeline: 200~5000 meters/size, depending on different sizes.
Q: What are your payment terms?
A: Accept the T/T and L/C terms.
|
|
